Avant Power Rake Attachment for Avant Mini Loaders
LANDSCAPING Power Rake

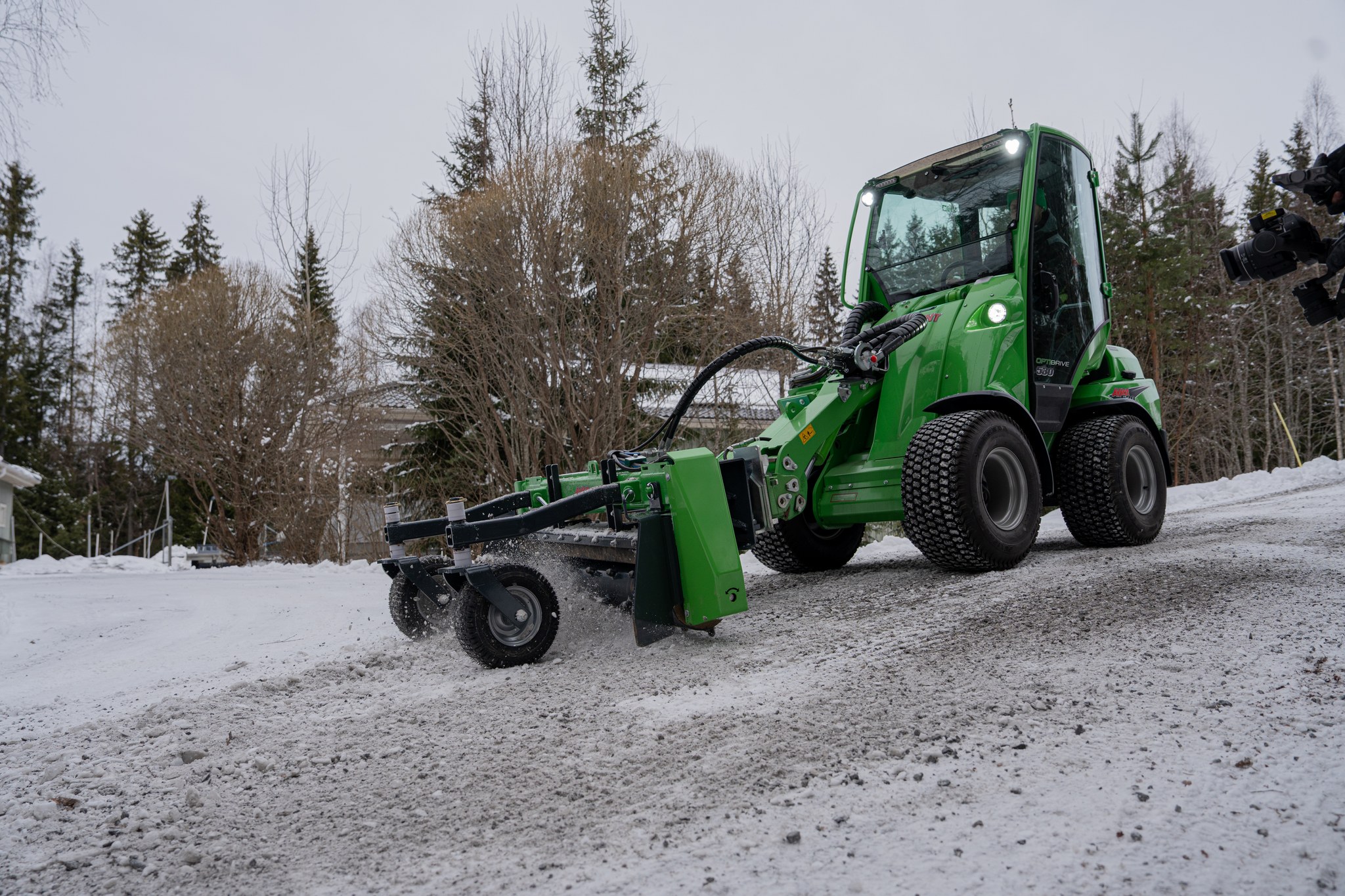

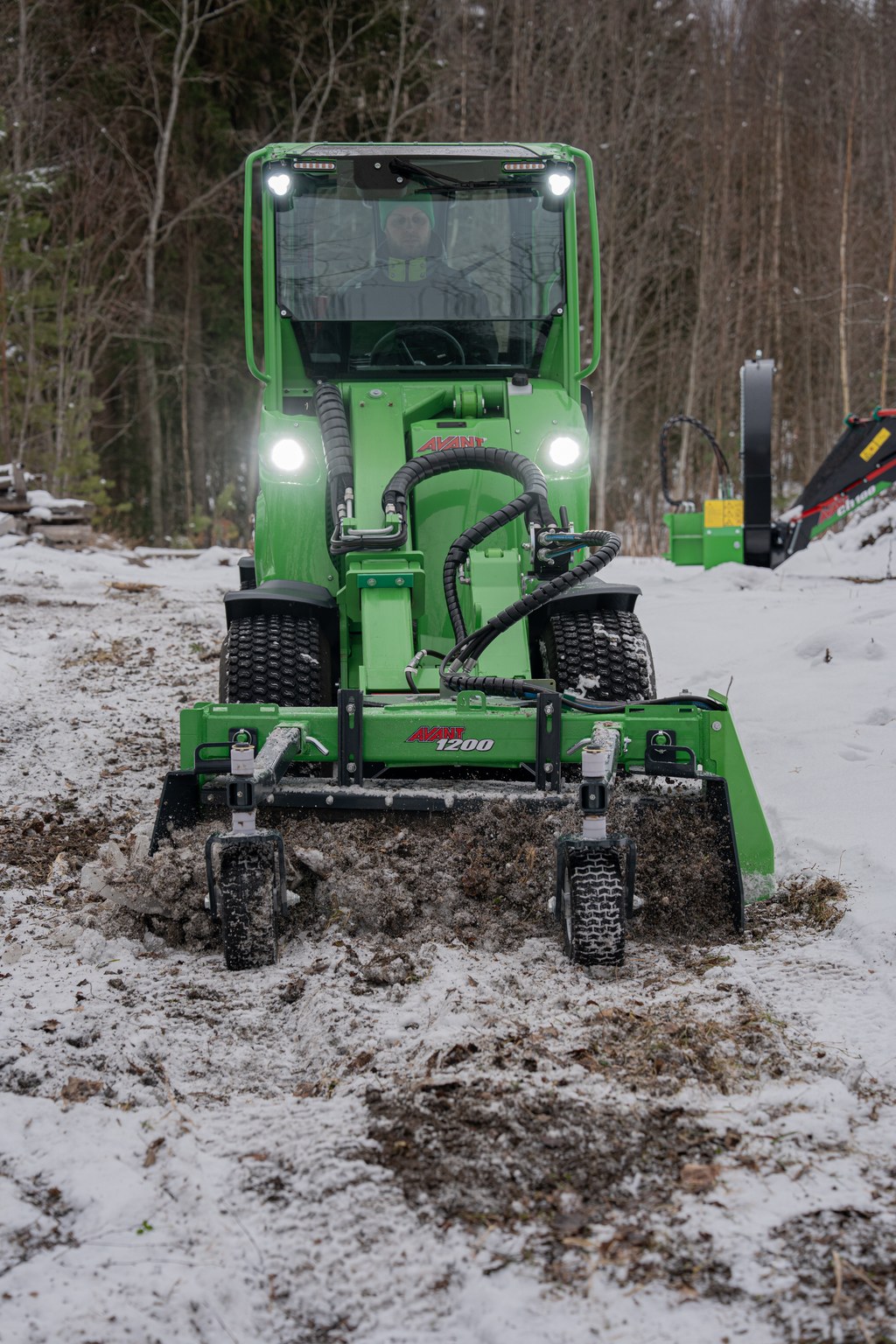

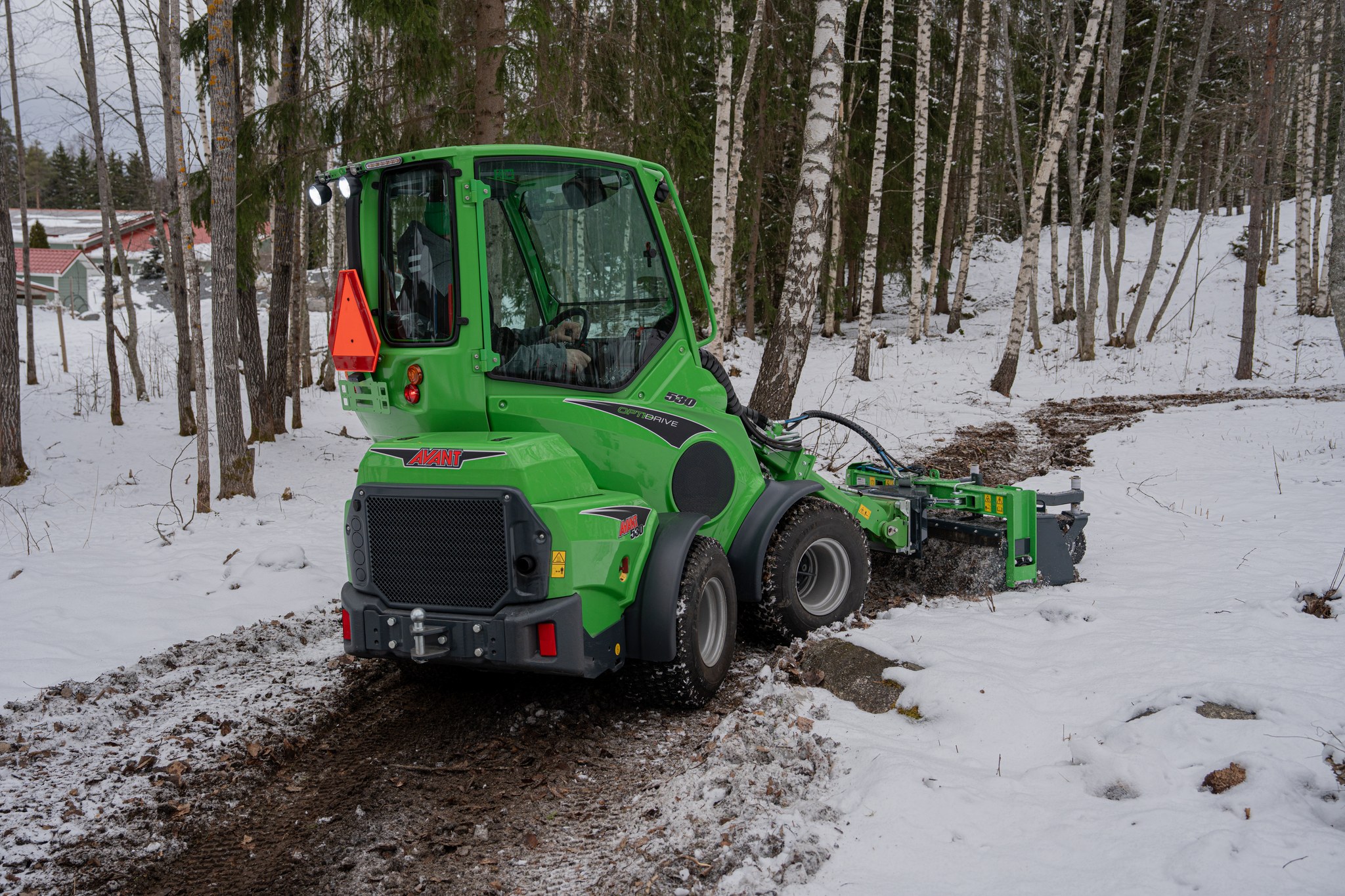

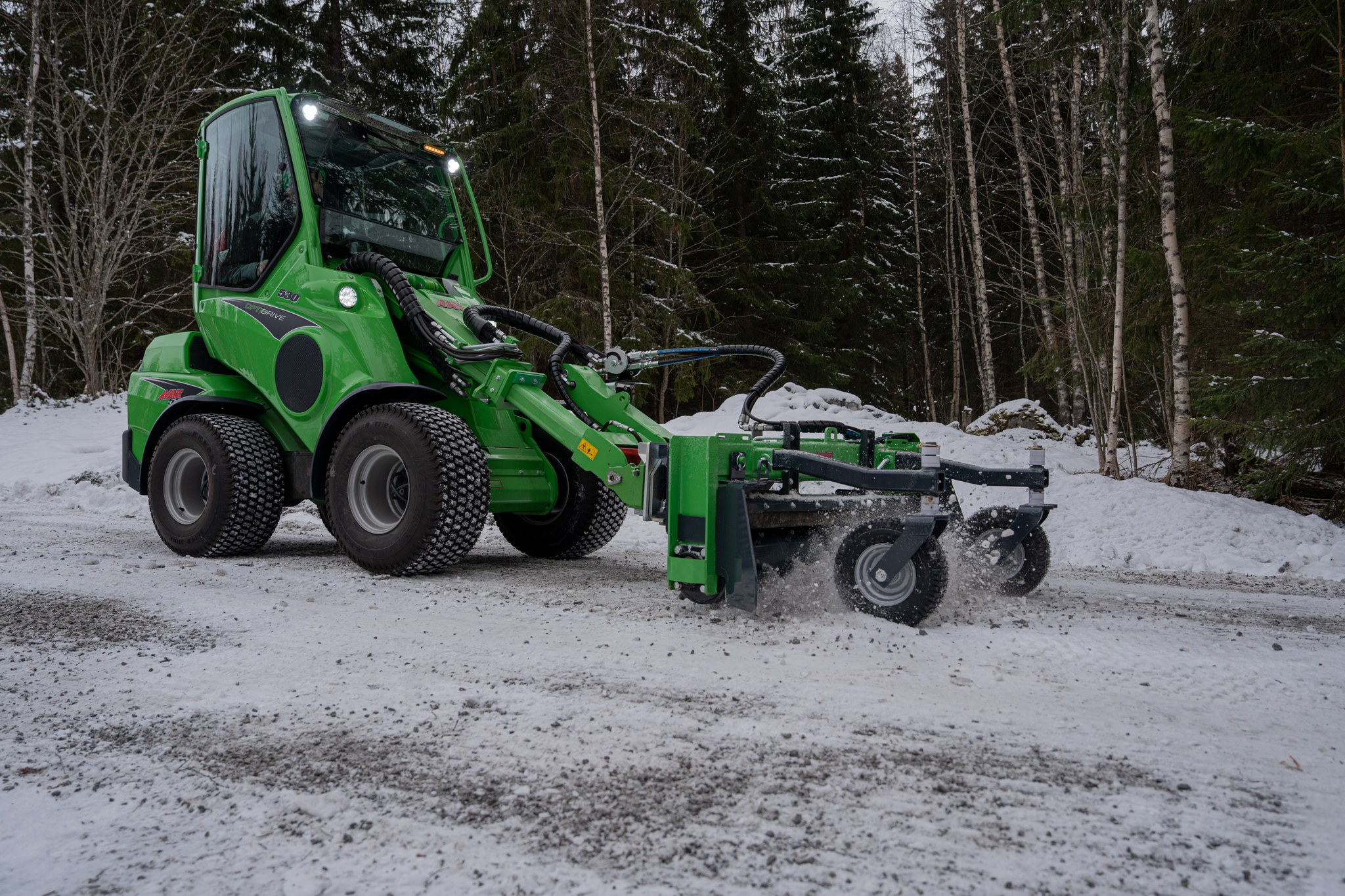

The Avant Power Rake is a versatile attachment for soil grading, levelling, raking, and removing of debris with an Avant compact loader. It can be used for preparing seedbeds, cutting grades, grading dirt and gravel roads, and cleaning up and grading different types of sites.

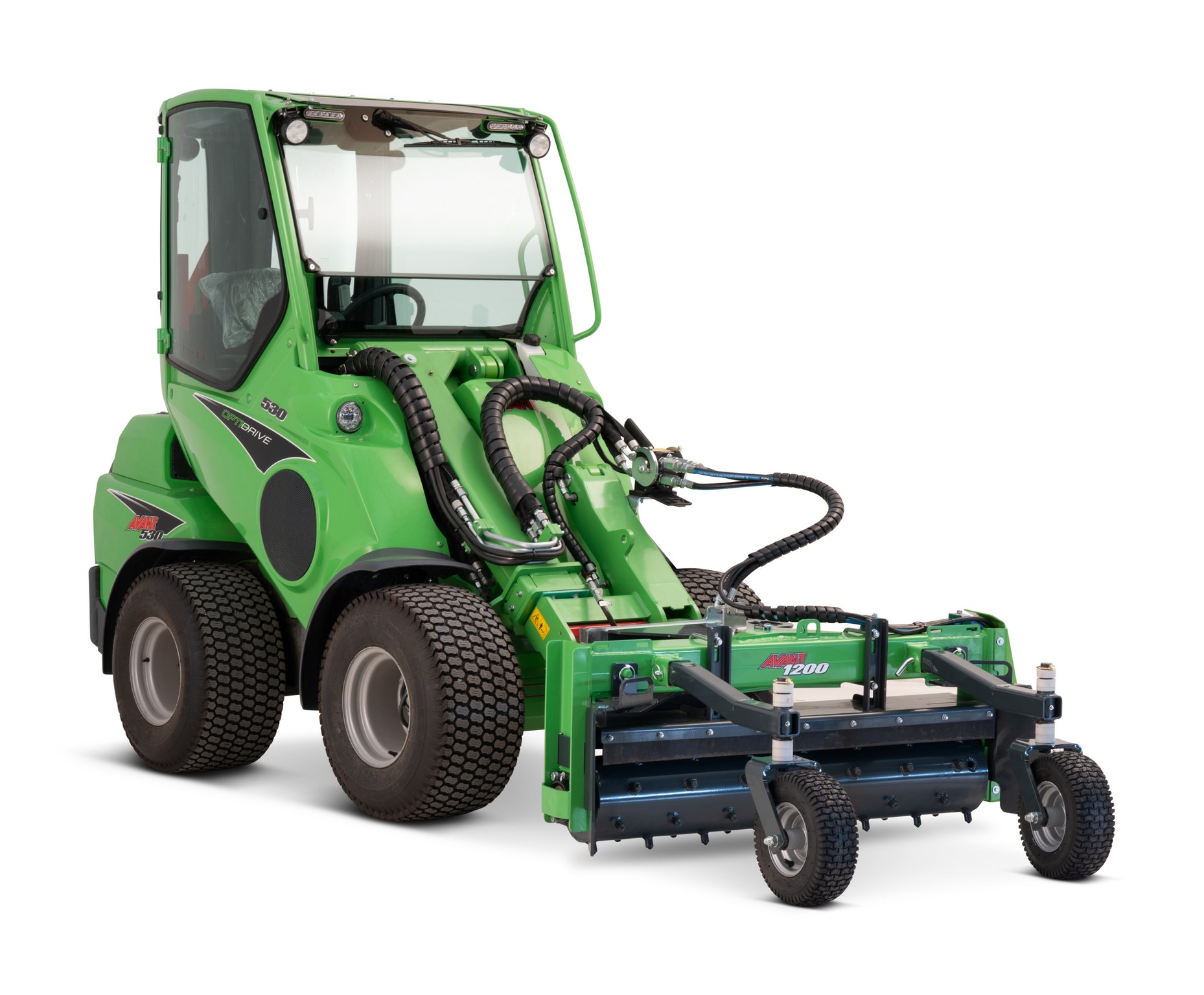

The shaft is equipped with tungsten teeth that mills the soil to maximum of 65 mm depth. The shaft rotating against the forward driving direction. The removable side plates make soil moving and guiding more efficient. The Avant Power Rake attachment is equipped with two adjustable support wheels and it can be turned to a maximum of +/- 30 degrees angle.
The high frame of the Avant Power Rake allows soil to move freely around the rake axle. There is also a redesigned splash guard above
the axle.
If the Avant Power Rake attachment is equipped with hydraulic turning, there is an electric solenoid valve for choosing between the rake hydraulic motor or hydraulic turning cylinder operation. The valve can be controlled either with the switch on the cable, which is delivered with the rake and connected to the 12V outlet on the loader or, more comfortably and ergonomically with the optional Opticontrol® control switch pack.
The larger 1800 mm model for Avant 700 and 800 series mini loaders is available with hydraulic turning only
With over 200 hundred attachments available you only need one loader for all your jobs, the Avant mini loader. Avant loaders and attachments are manufactured in Finland by Avant Tecno.
-
Versatile attachment for preparing seedbeds, grading dirt and gravel roads, cleaning up building sites -
Easy removal and piling up of rocks and other debris by driving forward
-
Available with manual or hydraulic turning of a maximum of +/- 30 degrees
-
Two models: 1500 mm or 1800 mm working width
-
For use with Avant compact articualted mini loaders. Can be adapted to fit 500 and e series loaders.
Videos
TECHNICAL INFORMATION
| Model | 1500 | 1800 |
| Working width | 1480 mm | 1780 mm |
| Total width | 1773 mm | 2074mm |
| Working depth | max. 65 mm | max. 65 mm |
| Turning angle | +/- 30° | +/- 30° |
| Length | 1210 mm | 1210 mm |
| Height | 670 mm | 670 mm |
| Weight | 315 kg | 340 kg |
| Product no., manual turning | A449836 | – |
| Product no., hydraulic turning | A449672 | A445931 |
The optional Opticontrol® is required on the mini loader with
hydraulic turning model
Compatible Models
| Model | 225 | 423 | 523 | 528 | 530 | 630 | 635 | 640 | 645i | 650i | 745 | 750 | 755i | 760i | 850 | 860i | e5 | e513 | e527 | e6 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1500 |  |
|
 |
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 1800 | |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
