Timber Grab With Rotator for Avant Compact Articulated Loaders

Arborists & Tree Lopping Timber Grab With Rotator

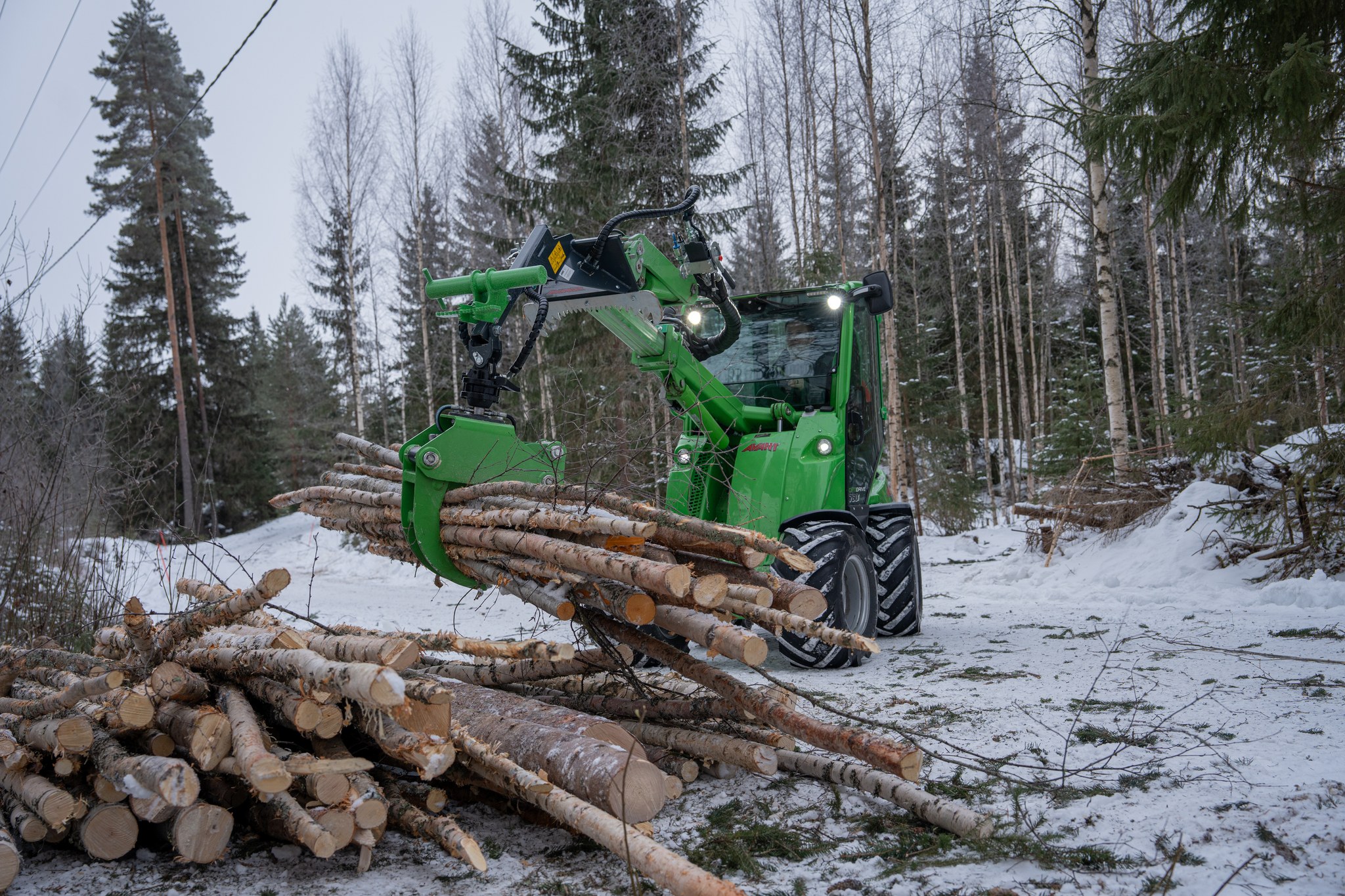

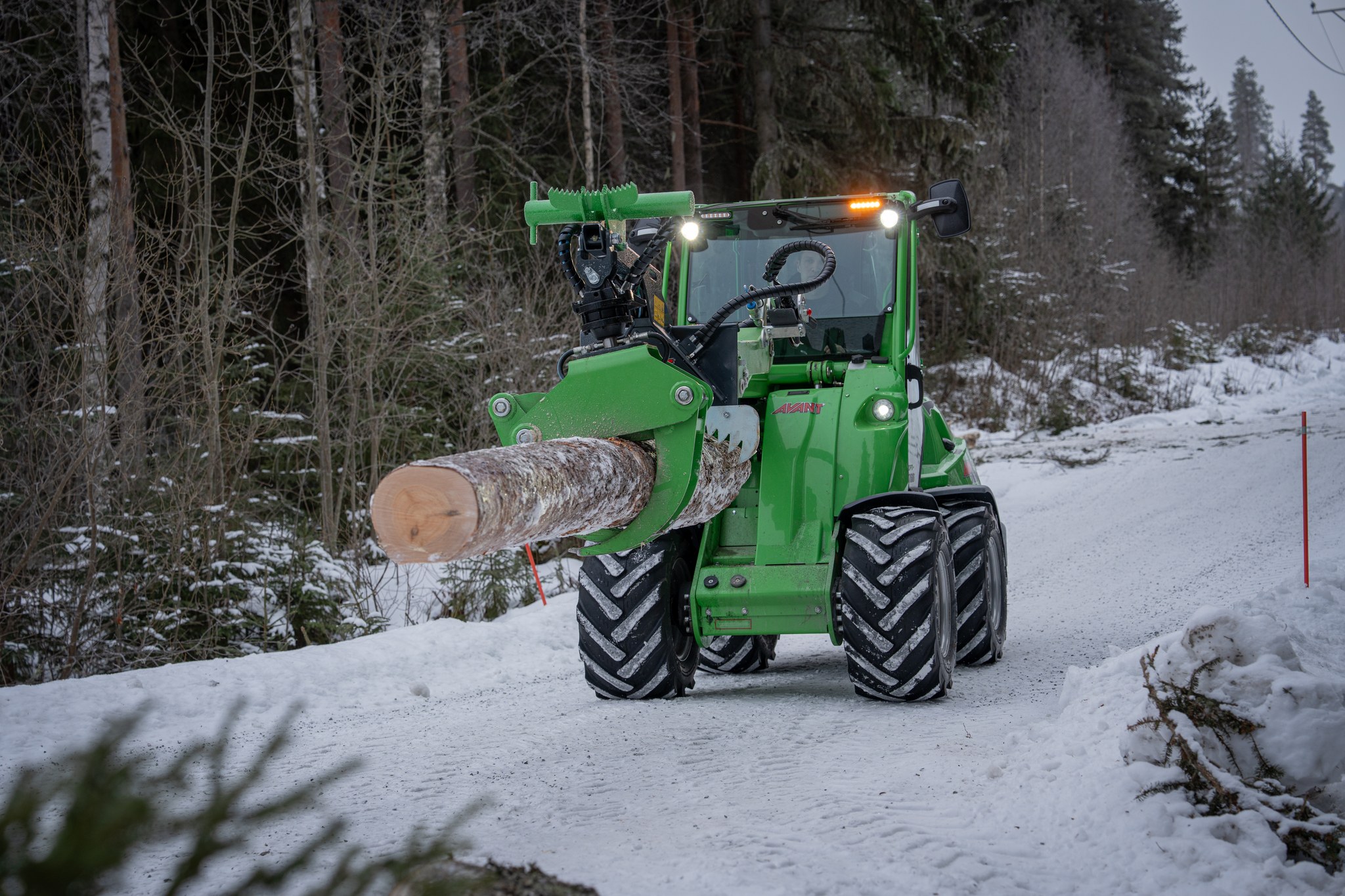

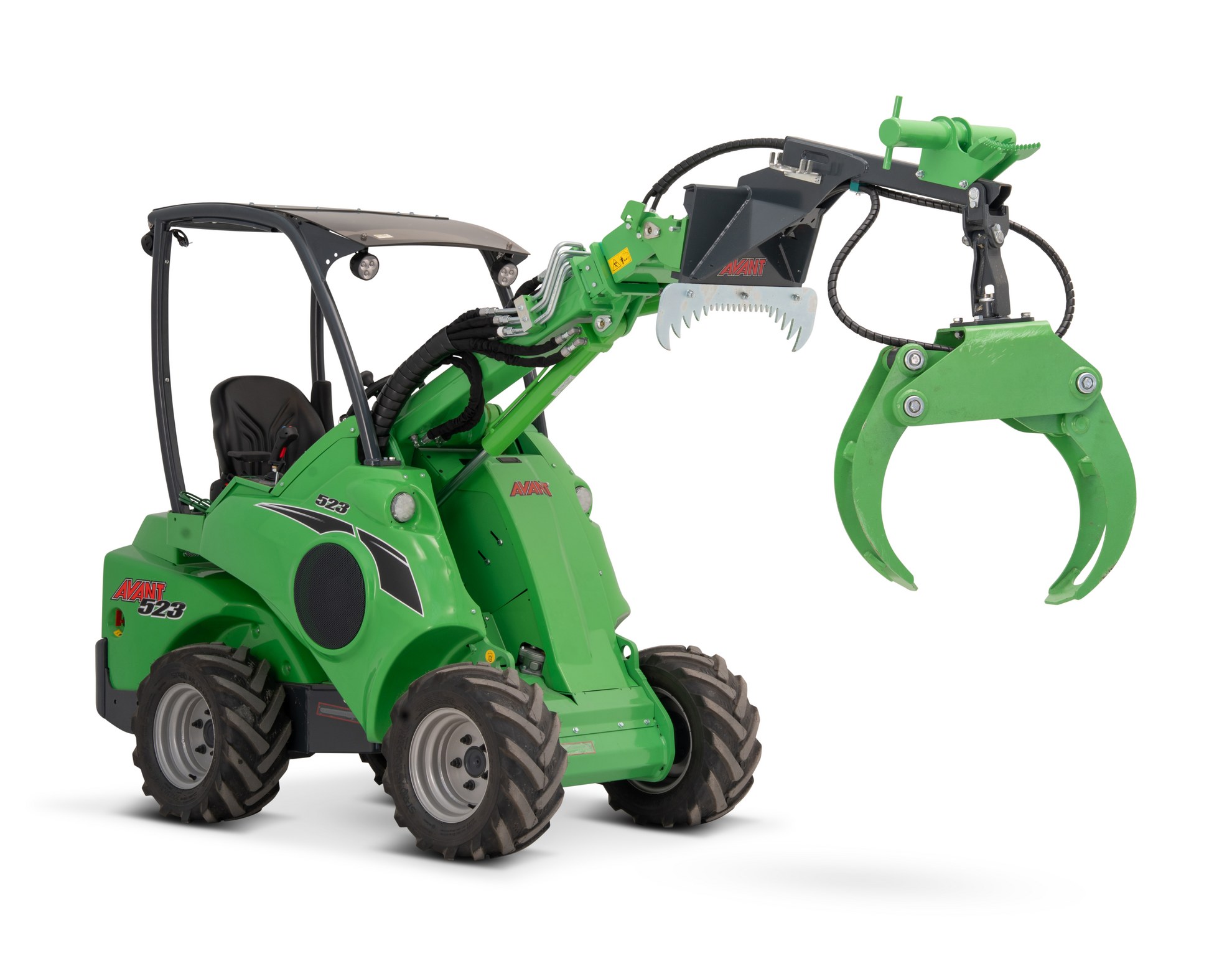

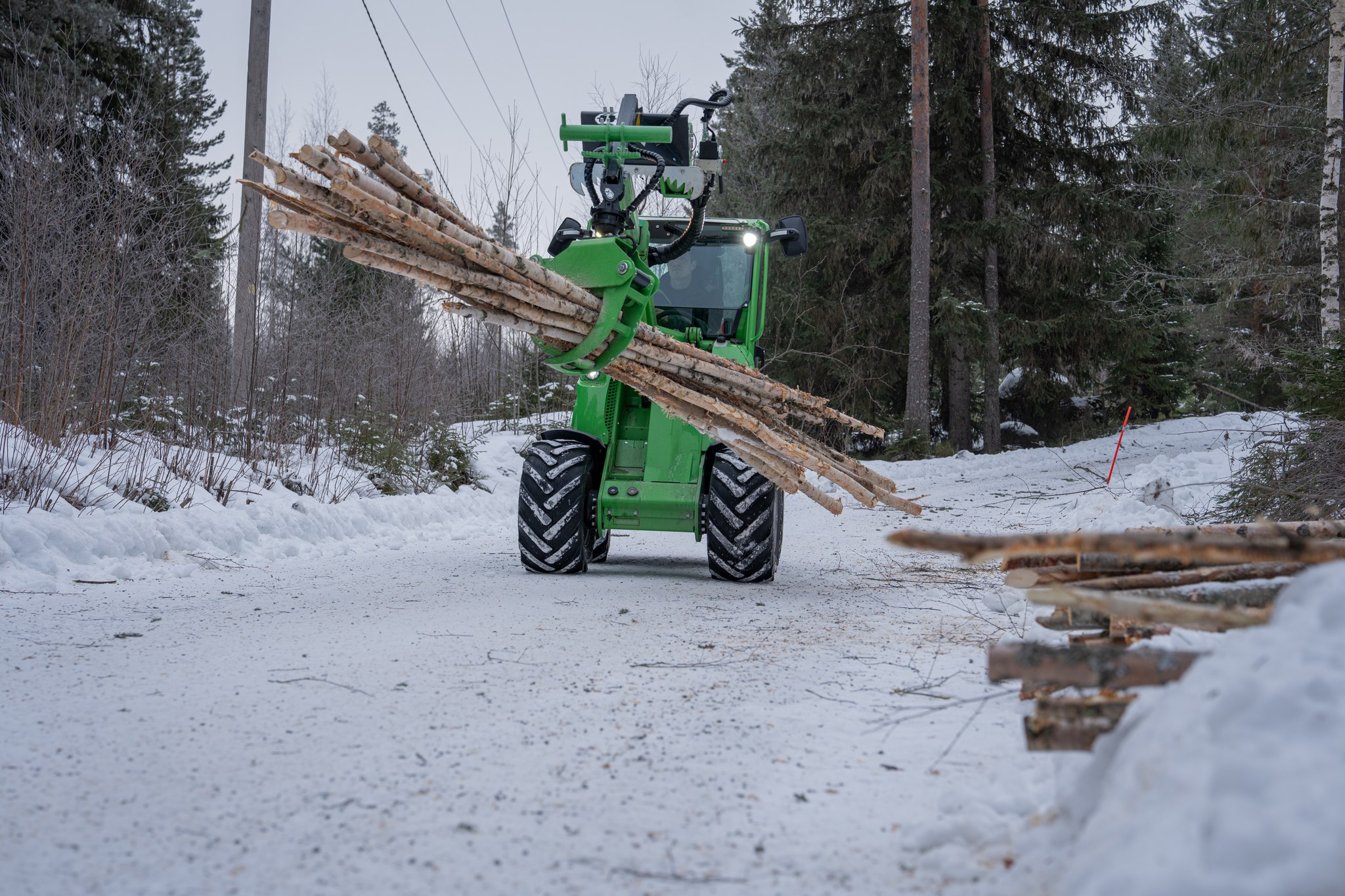

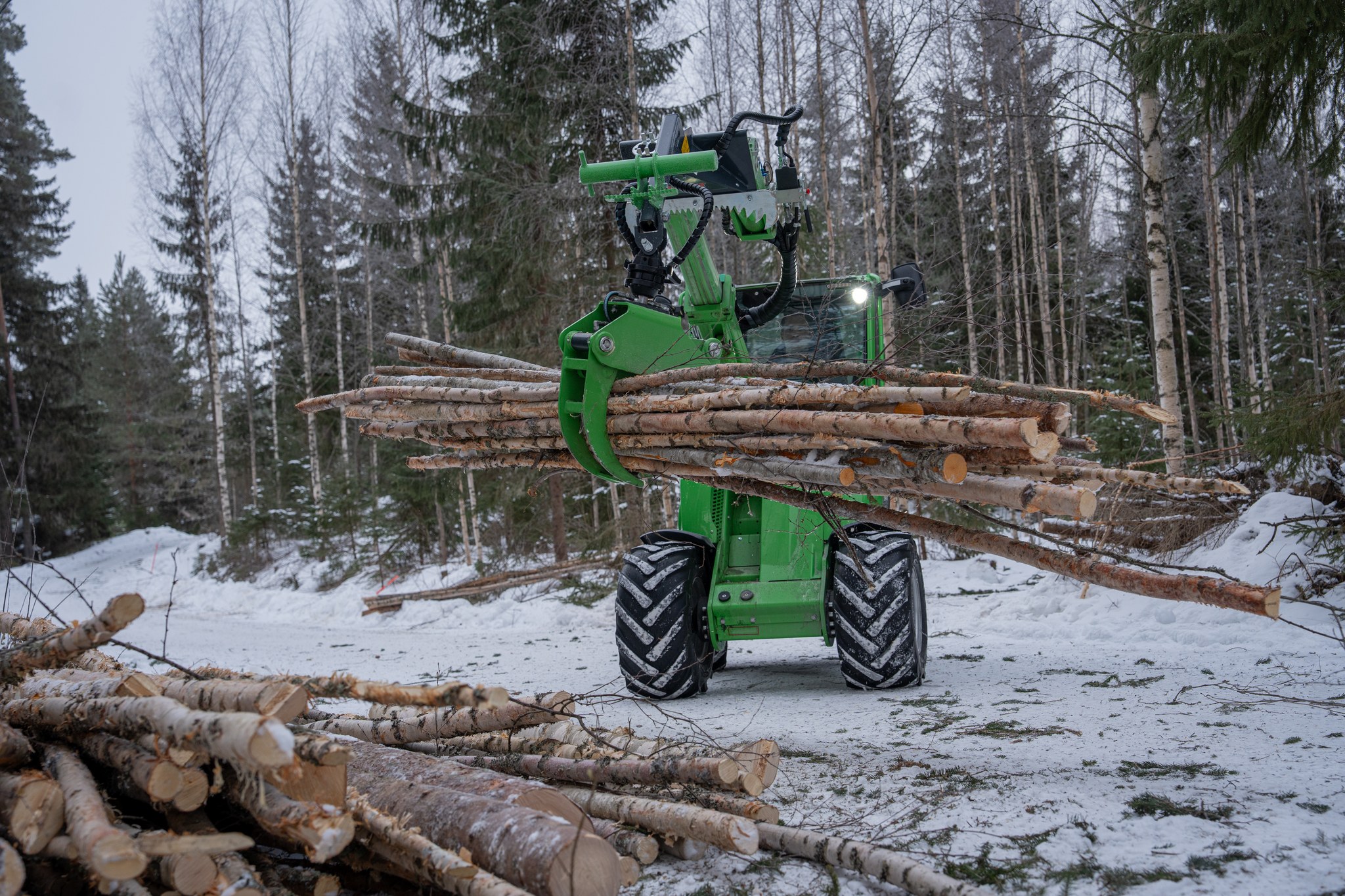

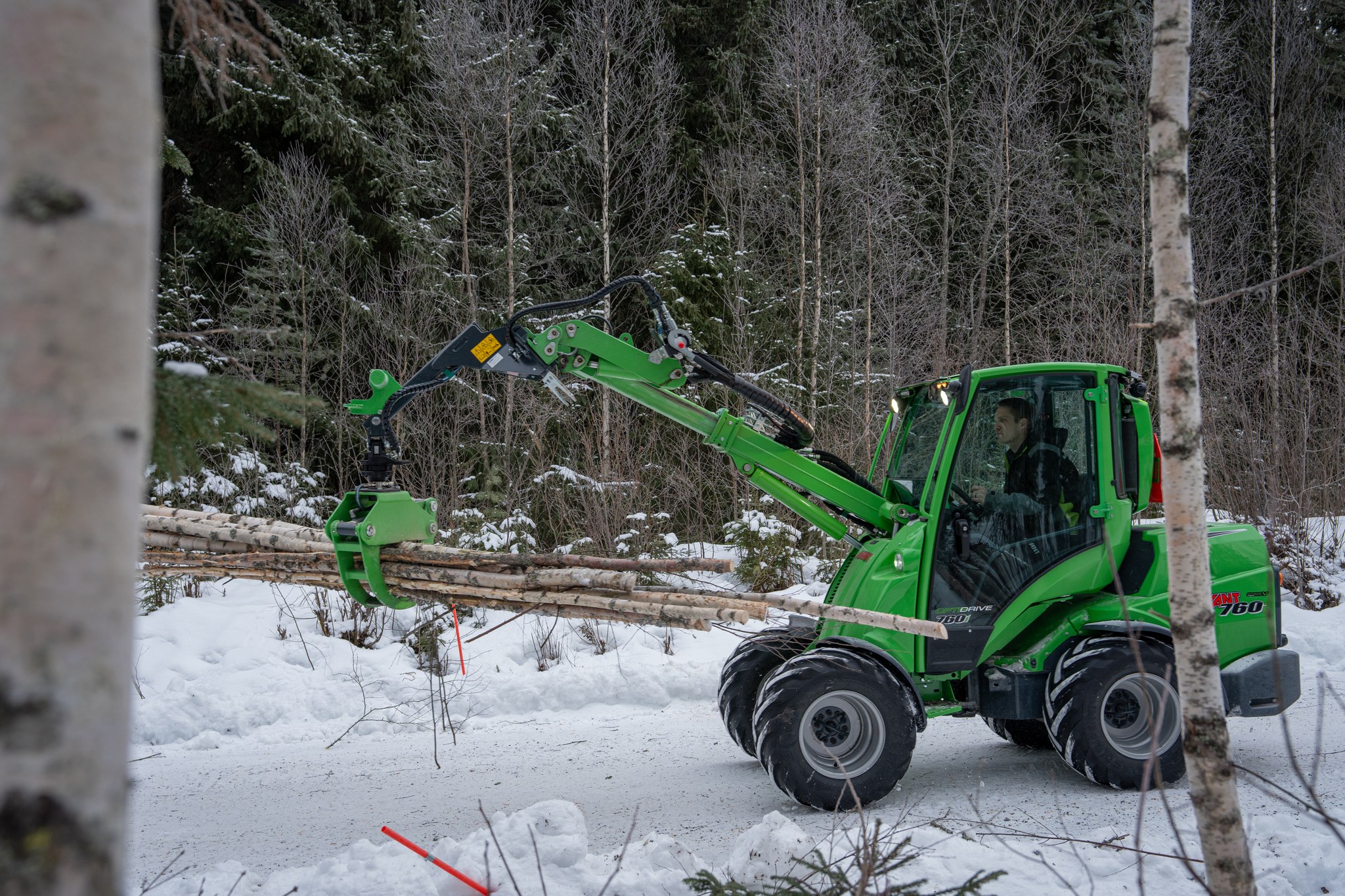

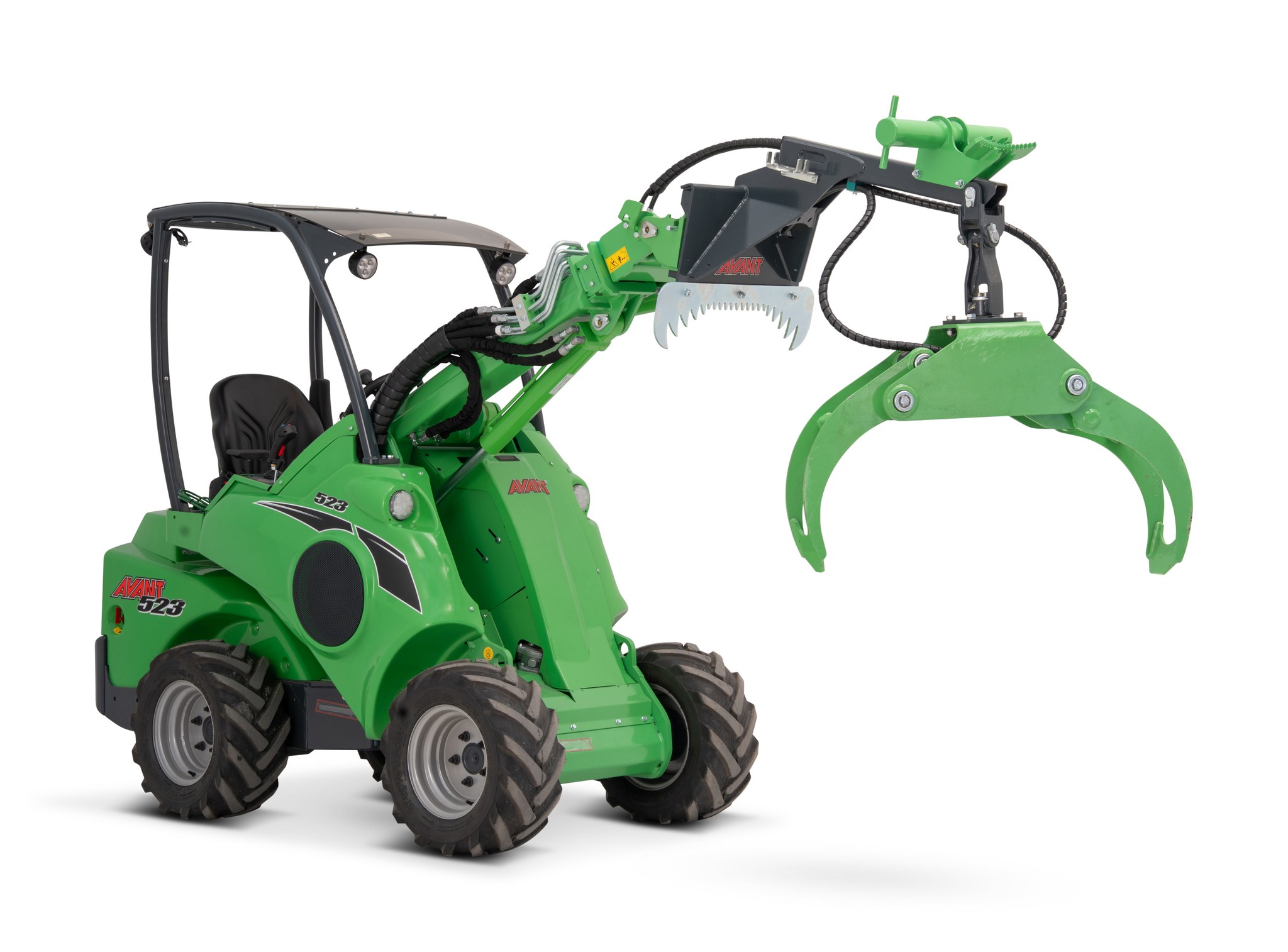

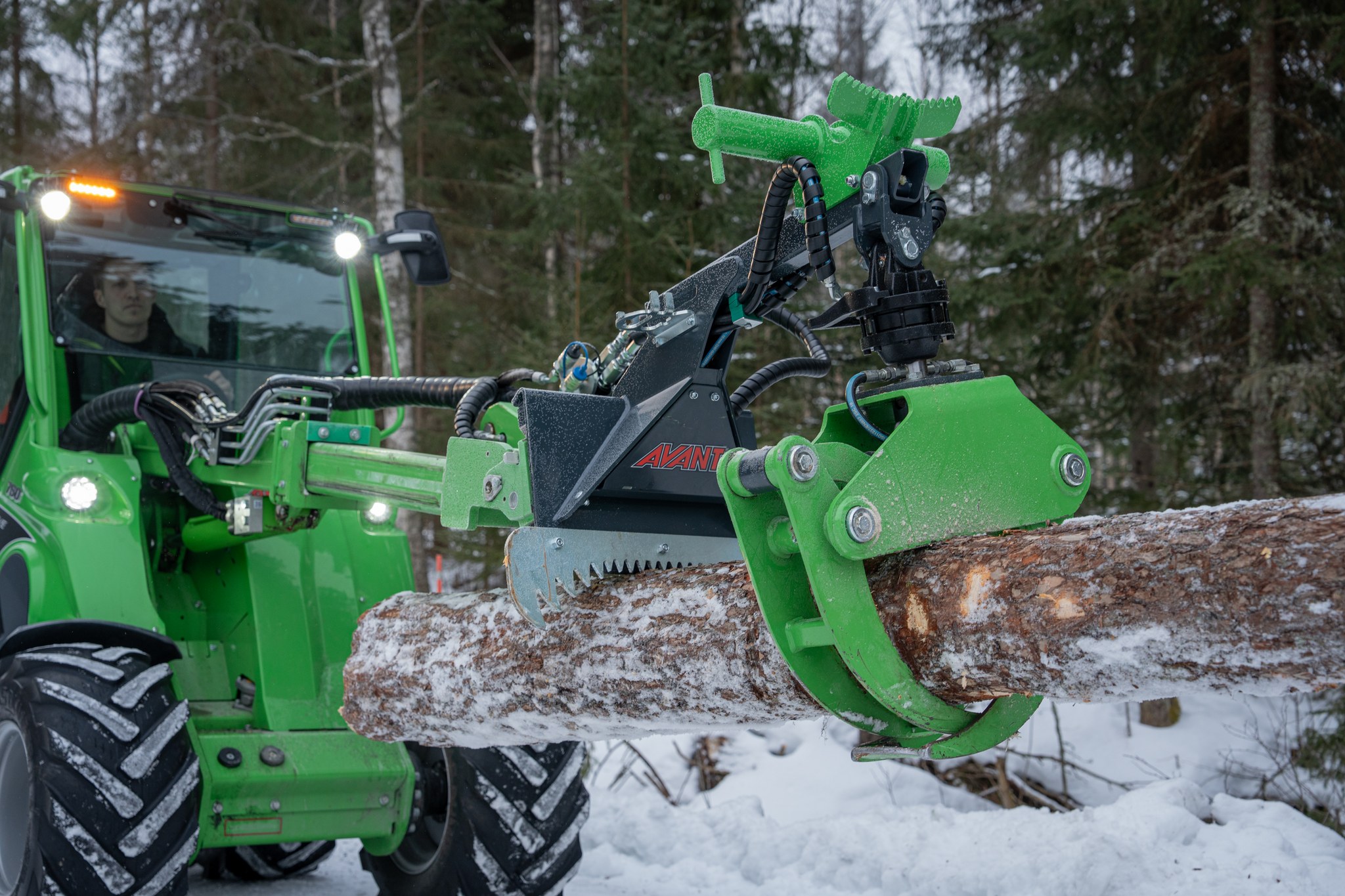

The Avant Timber Grab attachment. for Avant compact loaders, allows you to grab tree trunks, branches, wood waste and kerb stones and move them both lengthwise and crosswise. This makes it possible to pass through narrow places with long logs and enables loading on trailer or a pile in any direction.

The Timber Grab attachment is available either with a hydraulic rotator or as a freely rotating model. If the loader is equipped with the 6 or 8 function joystick, all functions of the grab with hydraulic rotator (grab opening/closing, rotation) can be operated with the switches on the optional Opticontrol switch pack.

  • Icon
    Versatile grab for transporting and loading of tree trunks, logs, branches, kerb stones
  • Icon
    Rotating grab allows transporting lengthwise, making it possible to pass through narrow places with long logs and work in dense forest
  • Icon
    Available with hydraulic rotator or as freely rotating version

Videos

TECHNICAL INFORMATION

Rotation type Grapple opening diameter Grip area Weight Product no
Freely rotating max. 1223 mm 0.6 m2 116 kg A37457
Hydraulic rotation max. 1223 mm 0.16 m2 136 kg A37456

The optional Opticontrol is recommended with grab with hydraulic rotator, for operating the grab opening/closing and rotation (requires also 6 or 8 function joystick on the loader).

OPTIONS

Arborist kit (tree pusher) A427744
Lock valve, mounting kit, on grab cylinder A436627

Compatible Models

Legend
225 423 523 528 530 630 635 640 645i 650i 745 750 755i 760i 850 860i e5 e513 e527 e6
Icon Icon Icon Icon Icon Icon Icon Icon Icon Icon Icon Icon Icon Icon Icon Icon Icon Icon Icon Icon
