600 Series Power & Agility
600 Series A perfect combination of power and agility

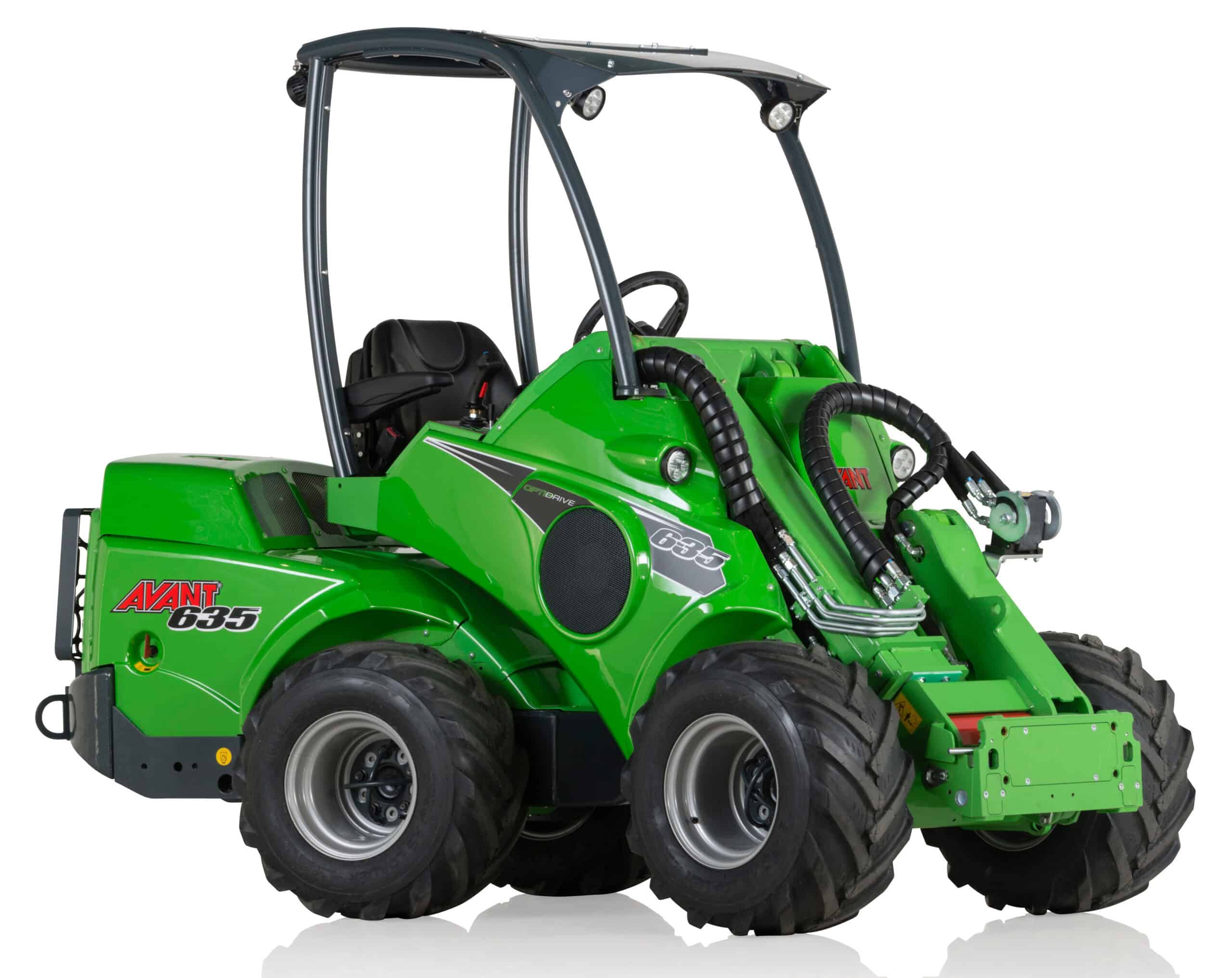

The Avant 600 series mini loader is a versatile, compact machine known for its power, lift capacity, and professional hydraulics. Ideal for industries like landscaping, arboriculture, farming, and construction, it offers a maximum lift capability of 1.1 tonnes and works seamlessly with nearly all Avant attachments.
Thanks to its compact size, transporting the Avant 600 and its attachments in a van or trailer is easy. The standard telescopic boom ensures excellent lift height and reach, providing smooth, efficient load handling.
Operators appreciate the Avant 600’s 4×4 hydrostatic drive for maximum traction and superior visibility to the attachment and work area. With over 200 available attachments, this mini loader is a top choice for professionals looking for flexibility and performance in their work.
Looking to upgrade your equipment? The Avant 600 series is the solution for efficient load management in various industries.
The Avant mini loaders are manufactured in Finland by Avant Tecno
- Lift capacity up to 1,190 kg
- Lift height 2.8 m
- Engine power 26-44 hp
- Drive speed 11-23 km/h
- Optidrive™ drive circuit gives more power for the drive and hydraulic attachments
- ideal for confined job sites with limited or restricted accessibility
- Easy to transport with a car trailer
The mini loader that will become
your best asset.
Secure
Because of the innovative articulated loader design, which places the driver in the front chassis with a clear view of the attachment and work area, the loader has a lower centre of gravity, which is crucial for stability.
The solid, non-swinging articulation joint improves stability in all situations. The sophisticated 4×4 system allows for the greatest amount of traction.
All Avant mini loaders come standard with an open, ROPS/FOPS certified cab, and there are optional enclosed cabs (L and GT) that also meet the sames standards.
Telescopic boom
The reach and lift height are not compromised even though Avant mini loaders are designed to be as compact as possible.
The telescopic boom of the Avant mini loader allows for a relatively small machine with a considerable outreach and lift capacity. The telescopic boom can be retracted to lift large items. Reach and lift height are unmatched with the boom fully extended.
Because of the telescopic boom’s reach, it is usually possible to load a trailer from one side while maintaining superb all-around visibility.
Versatile
Avant attachments have been specifically designed to work with Avant mini loaders. Only when a good machine is equipped with attachments that are particularly made for the machine can the best machine-attachment combination and work efficiency be accomplished. An Avant mini loader’s size, auxiliary hydraulics power, and other characteristics are perfectly balanced with the Avant attachments.
The year-round use of Avant compact loaders and attachments means that the machine is never left unused. An Avant mini loader is as comfortable to use in the winter cold as it is on a warm summer afternoon thanks to the extensive range of options available, such as four different cabs, extra work lights, the Opticontrol™ attachment control system, etc.
The hydraulic multi-connector system by Avant, for coupling the attachment’s hydraulic hoses ensures quick, simple, one-handed connection and disconnection effortlessly. Even at extremely cold temperatures, it can be done while the engine is running and/or there is pressure in the attachment.
The mechanism has no leaks and cannot be connected incorrectly.
Avant 4x4
Hydrostatic drive systems are standard on all Avant mini loaders. Each wheel has a hydraulic drive motor. There are valves in the drive circuit for traction control in a range of situations. The system enables the left and right wheels on the loader to roll at different speeds, preventing tyre markings on soft and sensitive surfaces when turning. Hard surface tyre wear is decreased as a result.
The drive system’s valves serve as a hydraulic 4×4 diff lock and equalize the oil flow between the hydraulic motors on the left and right, which enhances traction on slick and uneven surfaces.
Technical Specifications
LIFT CAPACITY 1100 kg
ENGINE POWER 28 hp
LIFT HEIGHT 2.8 m
SPEED 15 km/h
SPECIFICATIONS
| Length | 2490 mm – 2550 mm |
| Width | see table |
| Height | 2035 mm |
| Weight | 1330 + 170 kg |
| Standard wheels | 26×12.00-12″ Grass/ TR |
| Transmission, drive | hydrostatic |
| Pulling force | 1200 kp |
| Drive speed | 14 km/h |
| Aux. hydraulics oil flow / pressure | 44 l/min 200 bar |
| Turning radius inside/outside | 900 / 2190 mm |
| Max. lifting height | 2835 mm |
| Tipping load *) | 1000 kg |
| Max. breakout force / 50 cm | 1250 kg |
| Engine make and type | Kubota D 1105 |
| Engine output (ISO Gross) | 20 kW (28 hp) |
| Fuel | Diesel |
WIDTH
| Wheel size | Profile | Width |
| 27 x 8.50 – 15 *) | tractor | 1030 mm |
| 23 x 10.50 – 12 | tractor or grass | 1130 mm |
| 26 x 12.00 – 12 | tractor or grass | 1290 mm |
| 320/60 – 12 HD | tractor | 1290 mm |
HEIGHT WITH CAB
| Wheel size | 23×10.50-12 | 26×12.00-12 & 320/60-12 | 27×8.50-15 |
| L Cab | 2020 mm | 2035 mm | 2048 mm |
Dimensions
LIFT CAPABILITY 1,100 kg
ENGINE POWER 37.5 hp
LIFT HEIGHT 2,835 mm
SPEED 14 km/h
SPECIFICATIONS
| Length | 2490 mm – 2550 mm |
| Width | see table |
| Height | 2035 mm |
| Weight | 1360 + 170 kg |
| Standard wheels | 26×12.00-12″ Grass/TR |
| Transmission, drive | hydrostatic |
| Pulling force | 1200 kp |
| Drive speed | 14 km/h |
| Aux. hydraulics oil flow / pressure | 66 l/min 200 bar |
| Turning radius inside/outside | 900 / 2190 mm |
| Max. lifting height | 2835 mm |
| Tipping load *) | 1000 kg |
| Max. breakout force / 50 cm | 1250 kg |
| Engine make and type | Kubota V1505 |
| Engine output (ISO Gross) | 28 kW (37,5 hp) |
| Fuel | Diesel |
WIDTH
| Wheel size | Profile | Width |
| 27 x 8.50 – 15 *) | tractor | 1030 mm |
| 23 x 10.50 – 12 | tractor or grass | 1130 mm |
| 26 x 12.00 – 12 | tractor or grass | 1290 mm |
| 320/60 – 12 HD | tractor | 1290 mm |
HEIGHT WITH CAB
| Wheel size | 23×10.50-12 | 26×12.00-12 & 320/60-12 | 27×8.50-15 |
| L Cab | 2020 mm | 2035 mm | 2048 mm |
Dimensions
LIFT CAPABILITY 1190 kg
ENGINE POWER 26 hp
LIFT HEIGHT 2835 mm
SPEED 13 km/h
SPECIFICATIONS
| Length | 2610 mm |
| Width | 1290 mm |
| Height | 2060 mm |
| Weight | 1570 kg |
| Standard wheels | 26×12.00-12″ Grass/TR |
| Transmission, drive | Hydrostatic, Avant OptiDrive |
| Pulling force | 1400 kp |
| Drive speed | 13 km/h |
| Aux. hydraulics oil flow / pressure | 66 l/min 200 bar |
| Turning radius inside/outside | 940 / 2250 mm |
| Max. lifting height | 2835 mm |
| Tipping load *) | 1190 kg |
| Engine make and type | Kohler KSD 1403NA Stage V / Tier 4 Final 3-cylinder |
| Engine output (ECE R120) |
19 kW / 26 hp |
| Fuel | Diesel |
Dimensions
LIFT CAPABILITY 1,100 kg
ENGINE POWER 37.5 hp
LIFT HEIGHT 2,835 mm
SPEED 22 km/h
SPECIFICATIONS
| Length | 2490 mm – 2550 mm |
| Width | see table |
| Height | 2035 mm |
| Weight | 1420 + 170 kg |
| Standard wheels | 26×12.00-12″ Grass / TR |
| Transmission, drive | hydrostatic |
| Pulling force | 1400 kp |
| Drive speed | 11/22 km/h (2 speed) |
| Aux. hydraulics oil flow / pressure | 66 l/min 200 bar |
| Turning radius inside/outside | 900 / 2190 mm |
| Max. lifting height | 2835 mm |
| Tipping load *) | 1000 kg |
| Max. breakout force / 50 cm | 1250 kg |
| Engine make and type | Kubota V1505 |
| Engine output (ISO Gross) | 28 kW (37,5 hp) |
| Fuel | Diesel |
WIDTH
| Wheel size | Profile | Width |
| 27 x 8.50 – 15 *) | tractor | 1030 mm |
| 23 x 10.50 – 12 | tractor or grass | 1130 mm |
| 26 x 12.00 – 12 | tractor or grass | 1290 mm |
| 320/60 – 12 HD | tractor | 1290 mm |
HEIGHT WITH CAB
| Wheel size | 23 x 10.50-12 | 26″ wheels & 320/60-12 | 27 x 8.50-15 |
| L Cab | 2020 mm | 2035 mm | 2048 mm |
Dimensions
LIFT CAPABILITY 1,190 kg
ENGINE POWER 26 hp
LIFT HEIGHT 2.8 m
SPEED 23 km/h
SPECIFICATIONS
| Stage V | |
| Length | 2610 mm |
| Width | 1290 mm |
| Height | 2060 mm |
| Weight | 1580 kg |
| Standard wheels | 26×12.00-12″ Grass / TR |
| Transmission, drive | Hydrostatic Avant OptidriveTM |
| Pulling force max. | 1000 kp |
| Drive speed max. | 23 km/h |
| Aux. hydraulics oil flow / pressure | 66 l/min 200 bar |
| Turning radius inside/outside | 940 / 2250 mm |
| Max. lifting height | 2835 mm |
| Tipping load | 1190 kg |
| Max. breakout force / 50 cm | 1250 kg |
| Engine make and type | Kohler KSD 1403NA Stage V,3-cly |
| Engine output (ece r120) | 19 kW (26 hp) |
| Maximum torque | 90 Nm @1800 rpm |
| Fuel | Diesel |
| product no | M640i |
WIDTH
| WHEEL SIZE | Profile | Width |
| 27 x 8.50 – 15 *) | tractor | 1030 mm |
| 23 x 8.50 – 12 | tractor or grass | 1080 mm |
| 23 x 10.50 – 12 | tractor or grass | 1130 mm |
| 26 x 12.00 – 12 | tractor or grass | 1290 mm |
| 320/60 – 12 HD | tractor | 1290 mm |
| 320/55 – 15 | tractor or grass | 1305 mm |
| 26.5 x 14.00 – 12** | grass | 1420 mm |
*) bigger wheels will increase the total machine height by 13 mm
**) requires 40 mm spacers on the wheel hubs
HEIGHT WITH CAB
| Wheel size | 26×12.00-12 & 320/60-12* | 320-55/15 |
| GT Cab | 2070 mm | 2100 mm |
*) with 23″ wheels the machine is 15 mm lower
Dimensions
LIFT CAPABILITY 1,190 kg
ENGINE POWER 44 hp
LIFT HEIGHT 2.8 m
SPEED 12 km/h
SPECIFICATIONS
| Stage V | |
| Length | 2610 mm |
| Width | 1290 mm |
| Height | 2060 mm |
| Weight | 1620 kg |
| Standard wheels | 26×12.00-12″ Grass / TR |
| Transmission, drive | Hydrostatic Avant OptidriveTM |
| Pulling force max. | 1400 kp |
| Drive speed max. | 12 km/h |
| Aux. hydraulics oil flow / pressure | 75 l/min 200 bar |
| Turning radius inside/outside | 940 / 2250 mm |
| Max. lifting height | 2835 mm |
| Tipping load | 1190 kg |
| Max. breakout force / 50 cm | 1250 kg |
| Engine make and type | Kubota V1505-CR-TE5, Stage V, 4-cyl. |
| Engine output (ece r120) | 33 kW (44 hp) |
| Maximum torque | 118 Nm @ 2000 rpm |
| Fuel | Diesel |
| product no | M645 |
WIDTH
| WHEEL SIZE | Profile | Width |
| 27 x 8.50 – 15 *) | tractor | 1030 mm |
| 23 x 8.50 – 12 | tractor or grass | 1080 mm |
| 23 x 10.50 – 12 | tractor or grass | 1130 mm |
| 26 x 12.00 – 12 | tractor or grass | 1290 mm |
| 320/60 – 12 HD | tractor | 1290 mm |
| 320/55 – 15 | tractor or grass | 1305 mm |
| 26.5 x 14.00 – 12** | grass | 1420 mm |
*) bigger wheels will increase the total machine height by 13 mm
**) requires 40 mm spacers on the wheel hubs
HEIGHT WITH CAB
| Wheel size | 26×12.00-12 & 320/60-12* | 320-55/15 |
| GT Cab | 2070 mm | 2100 mm |
*) with 23″ wheels the machine is 15 mm lower
Dimensions
LIFT CAPABIILTY 1,190 kg
ENGINE POWER 44 hp
LIFT HEIGHT 2.8 m
SPEED 23 km/h
SPECIFICATIONS
| Stage V | |
| Length | 2610 mm |
| Width | 1290 mm |
| Height | 2060 mm |
| Weight | 1630 kg |
| Standard wheels | 26×12.00-12″ Grass / TR |
| Transmission, drive | Hydrostatic Avant OptidriveTM |
| Pulling force max. | 1400 kp |
| Drive speed max. | 23 km/h |
| Aux. hydraulics oil flow / pressure | 75 l/min 200 bar |
| Turning radius inside/outside | 940 / 2250 mm |
| Max. lifting height | 2835 mm |
| Tipping load | 1190 kg |
| Max. breakout force / 50 cm | 1250 kg |
| Engine make and type | Kubota V1505-CR-TE5, Stage V, 4-cyl. |
| Engine output (ece r120) | 33 kW (44 hp) |
| Maximum torque | 118 Nm @ 2000 rpm |
| Fuel | Diesel |
| product no | M650 |
WIDTH
| WHEEL SIZE | Profile | Width |
| 27 x 8.50 – 15 *) | tractor | 1030 mm |
| 23 x 8.50 – 12 | tractor or grass | 1080 mm |
| 23 x 10.50 – 12 | tractor or grass | 1130 mm |
| 26 x 12.00 – 12 | tractor or grass | 1290 mm |
| 320/60 – 12 HD | tractor | 1290 mm |
| 320/55 – 15 | tractor or grass | 1305 mm |
| 26.5 x 14.00 – 12** | grass | 1420 mm |
*) bigger wheels will increase the total machine height by 13 mm
**) requires 40 mm spacers on the wheel hubs
HEIGHT WITH CAB
| Wheel size | 26×12.00-12 & 320/60-12* | 320-55/15 |
| GT Cab | 2070 mm | 2100 mm |
*) with 23″ wheels the machine is 15 mm lower
