Avant ArborPro Mini Loader for Arborists and Tree Loppers
ArborPro Series Power & Agility for Arborists
ArborPro Series Outstanding power and agility

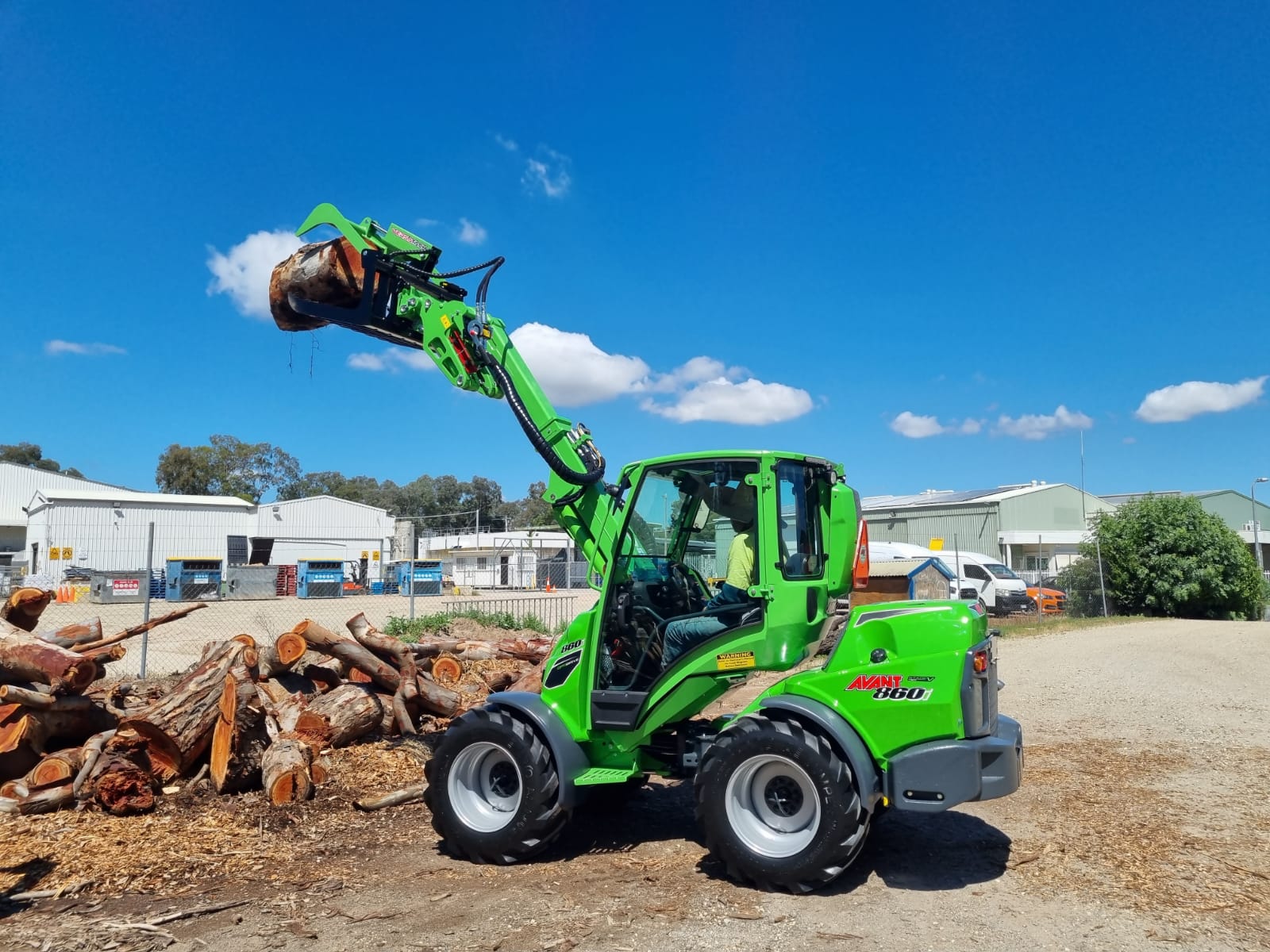

The Avant ArborPro is a mini loader that can easily access tight work sites. With a high and powerful lift capacity, the ArborPro mini loader combines manoeuvrability, stability, and speed to get jobs done quickly and efficiently. Arborists can carry, move, dig, level, grab, grind, and split materials efficiently with an ArborPro articulated mini loader. The tight-turning articulated chassis on this small articulated loader allows manoeuvrability in tight spaces while limiting damage to established and sensitive surfaces as it turns or carries a load.
With the telescopic boom, arborists can reach new heights and have greater reach. The modern off-centre boom construction guarantees excellent, unrestricted visibility, preventing the need to reach out from the driver’s seat to see the attachment. While the boom self-levelling makes load handling quicker, the articulated design allows precise sideways moving of the load in tight situations.
- Powerful lift capacity up to 1,400 kg (dependant on model)
- Articulated chassis offers light footprint for minimal surface damage
- Telescopic boom allows greater lifting height and outreach
- Perfect for small job sites with limited or narrow access
- Easy to operate thanks to basic controls and a unique hydraulic connection system
- Rigid articulation provides stability to safely negotiate demanding terrain

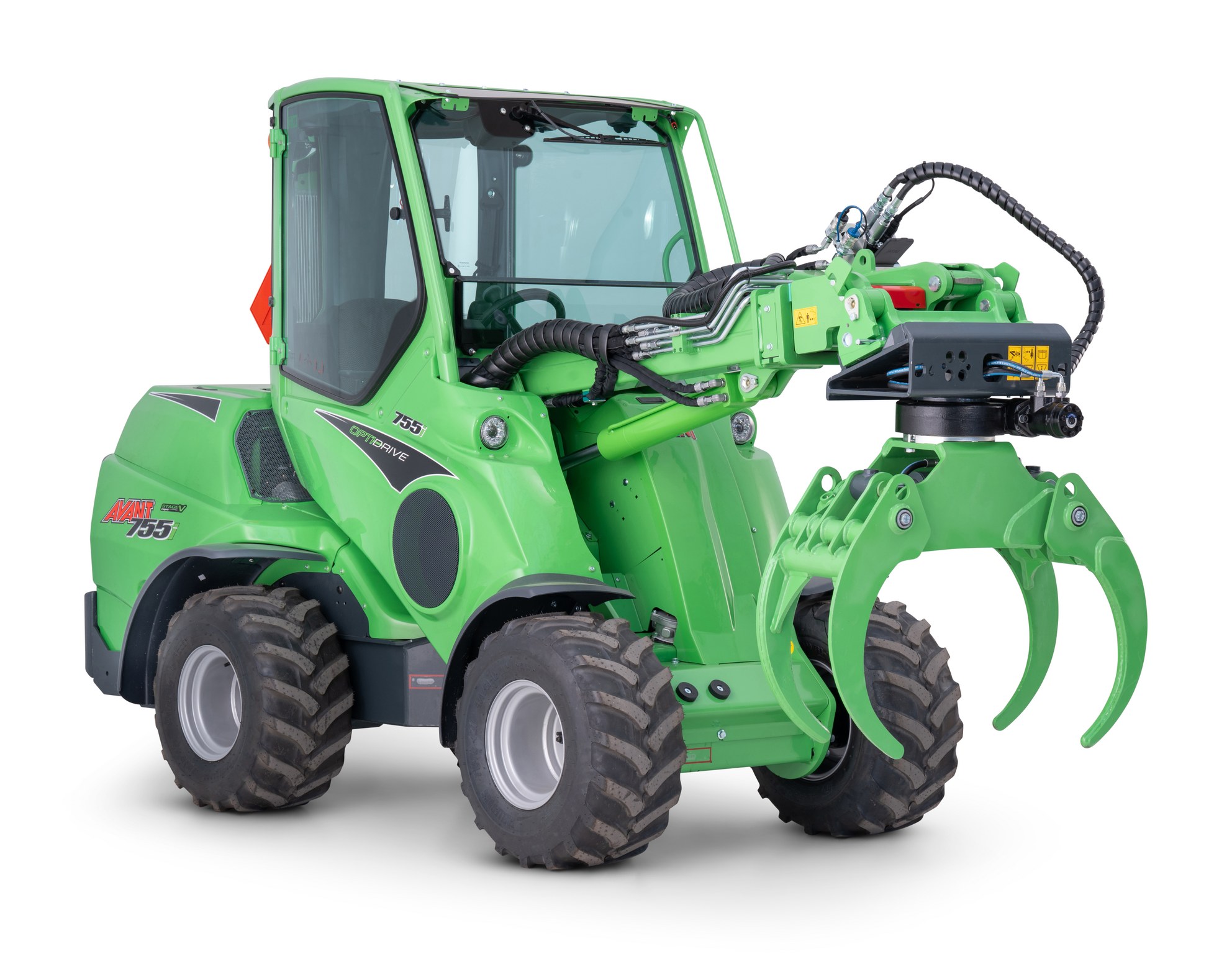

- Over 200 attachments available including grapples, stump grinders, log grabs and buckets
- Easy to transport on a trailer
- Optidrive™ drive circuit gives more power for driving and hydraulic attachments
the mini loader that will become your best friend
Secure
Avant’s ingenious articulated loader design, where the driver sits in the front chassis and has a perfect view on the attachment and work area, means the machine has a low center of gravity, which is important for stability. The rigid articulation joint, which doesn’t swing sideways, increases the stability in all situations and at the same time best possible traction can be achieved thanks to the advanced 4×4 system.
All Avant mini loaders are equipped with an open ROPS/FOPS certified cab as standard, and have optional enclosed cabs (L, LX, DLX, GT) available that comply with the ROPS/FOPS standards.
Telescopic Boom
While Avant mini loaders are made as compact as possible, the reach and lift height does not suffer.
The Avant mini loader’s telescopic boom makes it possible to have a very compact machine with a great outreach and lift capacity. When the telescopic boom is retracted it is possible to lift heavier loads. With the boom fully extended, the reach and lift height are unparalleled.
In many cases, it is possible to load a trailer from one side, thanks to the outreach of the telescopic boom, and still have excellent all-round visibility.
Versatile
Avant attachments and loaders have been specifically designed to work together for excellent work efficiency. The dimensions, auxiliary hydraulics output and other features make the Avant mini loader and attachments in perfect balance.
With over 200 Avant attachments, arborists can choose from a range of treecare attachments including grapples, stump grinders, log grabs and buckets. There is also a wide range of loader options including enclosed cabs, extra work lights, trailers and tire options.
Avant’s hydraulic multi-connector system for coupling the attachment’s hydraulic hoses guarantees easy and effortless connecting and detaching in any situation with a single hand movement. It can be done with the engine running and/or pressure in the attachment, also in freezing ambient temperatures.
Avant 4 x 4
All articulated Avant mini loaders are equipped with a hydrostatic drive system. There is a hydraulic drive motor on each wheel. The drive circuit is equipped with valves with which traction can be controlled in different situations. In order to avoid tyre marks on soft and sensitive surfaces when turning, the system allows the wheels on the left and right sides of the articulated loader to roll at different speeds. This also reduces tyre wear on hard surfaces.
The valves in the drive system work like a hydraulic 4×4 diff lock and equalize the oil flow between the left and right side hydraulic motors, improving traction on slippery and uneven surfaces.
Technical Specifications
LIFT CAPACITY 950 kg
ENGINE POWER 28 hp
LIFT HEIGHT 2.8 m
SPEED 12 km/h
SPECIFICATIONS
| Length | 2490 mm – 2550 mm |
| Width | see table |
| Height | 1980 mm |
| Weight | 1250 + 170 kg |
| Standard wheels | 23×10.50-12”grass/TR |
| Transmission, drive | hydrostatic |
| Pulling force | 950 kp |
| Drive speed max. | 12 km/h |
| Aux. hydraulics oil flow / pressure | 36 l/min 200 bar |
| Turning radius inside/outside | 995 / 2050 mm |
| Max. lifting height (with telescopic boom) | 2790 mm |
| Tipping load * | 950 kg |
| Max. breakout force / 50 cm | 1250 kg |
| Engine make and type | Kubota D1105 |
| Engine output (ISO Gross) | 21 kW (28 hp) |
| Fuel | Diesel |
WIDTH
| Wheel size | Profile | Machine width |
| 27 x 8.50 – 15 *) | tractor | 1030 mm |
| 23 x 8.50 – 12 | tractor or grass | 1080 mm |
| 23 x 10.50 – 12 | tractor or grass | 1130 mm |
| 26 x 12.00 – 12 *) | tractor or grass | 1290 mm |
| 320/60 – 12 HD *) | tractor | 1290 mm |
HEIGHT WITH CAB
| Wheels | L Cab | LX Cab | DLX Cab |
| 23″ | 2020 mm | 2010 mm | 2030 mm |
| 26″ and 320/60-12 | 2035 mm | 2025 mm | 2045 mm |
| 27″ | 2048 mm | 2038 mm | 2058 mm |
Dimensions
LIFT CAPACITY 1,100 kg
ENGINE POWER 37.5 hp
LIFT HEIGHT 2.8 m
SPEED 14 km/h
SPECIFICATIONS
| Length | 2490 mm – 2550 mm |
| Width | see table |
| Height | 2035 mm |
| Weight | 1360 + 170 kg |
| Standard wheels | 26×12.00-12″ Grass/TR |
| Transmission, drive | hydrostatic |
| Pulling force | 1200 kp |
| Drive speed | 14 km/h |
| Aux. hydraulics oil flow / pressure | 66 l/min 200 bar |
| Turning radius inside/outside | 900 / 2190 mm |
| Max. lifting height | 2835 mm |
| Tipping load *) | 1000 kg |
| Max. breakout force / 50 cm | 1250 kg |
| Engine make and type | Kubota V1505 |
| Engine output (ISO Gross) | 28 kW (37,5 hp) |
| Fuel | Diesel |
WIDTH
| Wheel size | Profile | Width |
| 27 x 8.50 – 15 *) | tractor | 1030 mm |
| 23 x 10.50 – 12 | tractor or grass | 1130 mm |
| 26 x 12.00 – 12 | tractor or grass | 1290 mm |
| 320/60 – 12 HD | tractor | 1290 mm |
HEIGHT WITH CAB
| Wheel size | 23×10.50-12 | 26×12.00-12 & 320/60-12 | 27×8.50-15 |
| L Cab | 2020 mm | 2035 mm | 2048 mm |
| LX Cab | 2010 mm | 2025 mm | 2038 mm |
| DLX Cab | 2030 mm | 2045 mm | 2058 mm |
| DLX with A/C on the roof | 2166 mm | 2181 mm | 2194 mm |
Dimensions
LIFT CAPACITY 1,400 kg
ENGINE POWER 49 hp
LIFT HEIGHT 3 m
SPEED 15 km/h
SPECIFICATIONS
| Length | 3060 mm |
| Width | see table |
| Height | 2060 mm |
| Weight | 1850 kg |
| Standard wheels | 320/60-12” HD TR |
| Transmission, drive | hydrostatic |
| Aux. hydraulics oil flow / pressure | 70 l/min 240 bar |
| Hydraulic oil cooler | Standard |
| Turning radius inside/outside | 1240 / 2780 mm |
| Max. lifting height | 3080 mm |
| Max. lifting capacity (hydr.) | 2100 kg |
| Tipping load | 1400 kg |
| Max. breakout force / 50 cm | 1700 kg |
| Engine make and type | Kubota V2403 |
| Engine output (ISO Gross) | 36 kW (49 hp) |
| Fuel | Diesel |
PULLING FORCE
| Wheel size | Drive speed | Pulling force |
| 320/60-12 and 26×12.00-12 | 15 km/h | 1330 kp |
| 320/55-15 | 16 km/h | 1240 kp |
WIDTH
| Wheel size | Width |
| 27 x 8.50 – 15 | 1030 mm |
| 26 x 12.00 – 12 | 1295 mm |
| 320/60-12 HD | 1295 mm |
| 320/55-15 HD | 1305 mm |
HEIGHT WITH CAB
| . | 26×12.00-12 or 320/60-12 wheels | 320/55-15 wheels |
| LX Cab | 2078 mm | 2112 mm |
| DLX Cab | 2105 mm | 2139 mm |
| DLX with A/C on the roof | 2241 mm | 2275 mm |
Dimensions
