700 Series Power for professionals
700 Series Outstanding handling capacity
A remarkable compact loader with a significant handling capacity, the Avant 700 series mini loaders are a fantastic versatile machine. When a machine needs to be as small as possible while still providing a significant lift capacity and/or driving speed this loader is ideal.

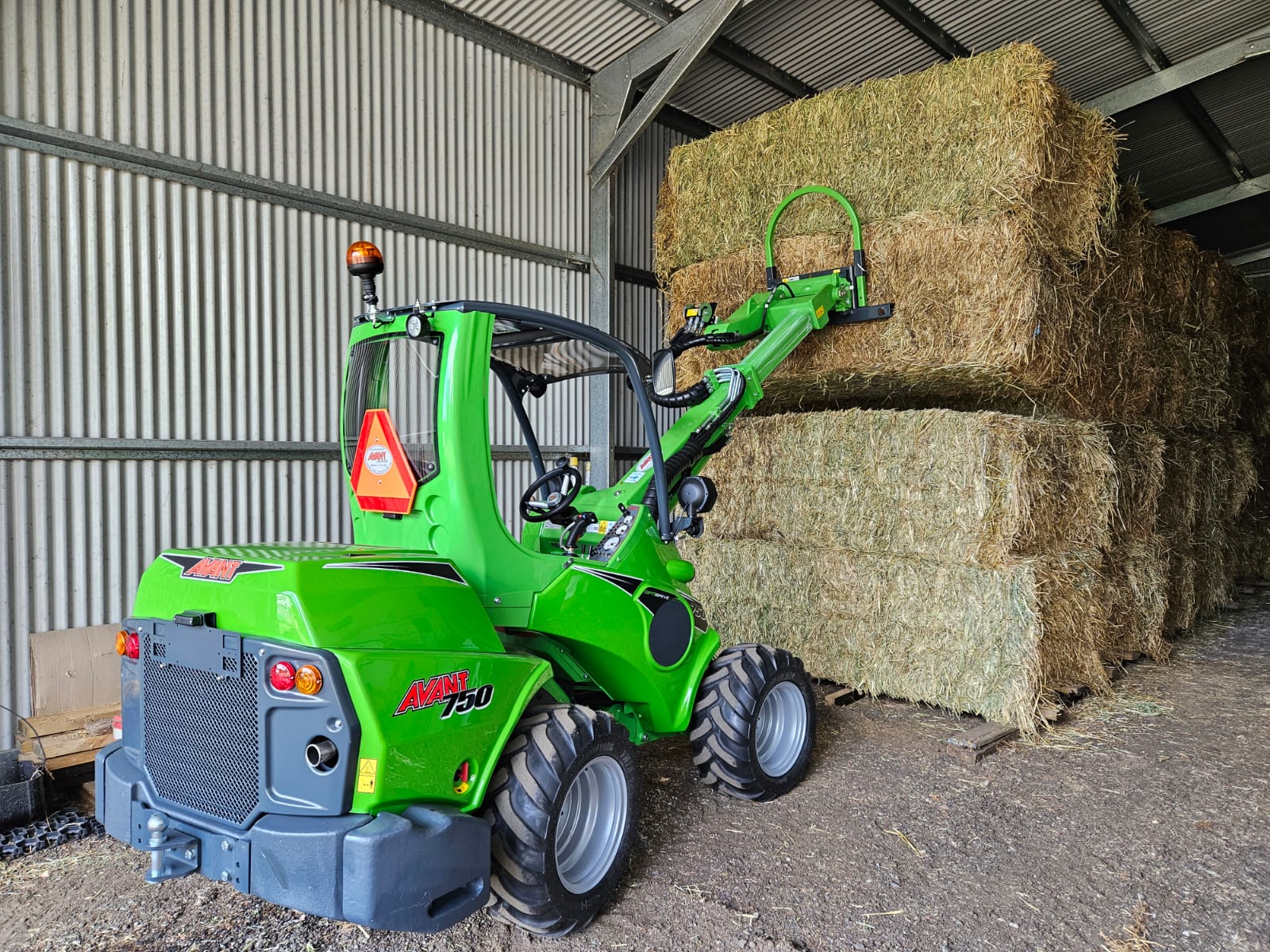

The Avant 700 series compact loader is the ideal choice for property maintenance, street cleaning, and tree work in challenging locations. On farms and equestrian facilities, it is the perfect loader for lifting and handling bales, filling hoppers, and cleaning out stables. Ideal for lifting and transfer work due to its lifting capacity and lifting height, the Avant 700 series mini loader is perfect for handling pavers, transporting materials around the site, and clearing soil for landscaping. The adaptability of the Avant 700 series makes it the perfect machine choice for working at wholesale and production nurseries.
Despite being big and powerful, a vehicle trailer can still be used to transport this compact loader. The quick site transfers are made possible by the high drive speed.
High flow auxiliary hydraulics run all Avant attachments which further increases the versatility of the machine.
The Avant 700 series loader can be equipped with cab options, including A/C, which offers the ideal conditions for a full day of work. A comprehensive selection of options boosts operator comfort.
- Lift capacity 1,400 kg
- Lift height 3.1 m
- Engine power 49-57 hp
- Drive speed 15-26 km/h
- Cab options L available and GT cab available on select models.
- Easy to transport with a car trailer
- Optidrive™ drive circuit gives more power for the drive and hydraulic attachments
The versatile mini loader for all jobs
Secure
Avant articulated loaders are engineered for exceptional stability and visibility. The innovative design positions the operator on the front chassis, providing a clear view of the attachment and work area while maintaining a low centre of gravity for maximum balance and control.
A solid, non-swinging articulation joint ensures superior stability in every situation, while the advanced 4×4 drive system delivers outstanding traction on all surfaces.
Every Avant mini loader is equipped with an open ROPS/FOPS certified cab as standard, with optional enclosed L and GT cabs available — both meeting the same high safety standards.
Telescopic boom
Avant mini loaders are engineered for maximum performance in a compact design. Despite their small size, the reach and lift height are never compromised.
Equipped with a powerful telescopic boom, each Avant mini loader delivers impressive outreach and lifting capacity for its size. The boom can be retracted for lifting heavy loads and fully extended for exceptional reach and height.
Thanks to the telescopic boom’s versatility, operators can easily load trailers from one side while maintaining excellent all-round visibility and control — improving both efficiency and safety on site.
Versatile
Avant attachments are specially designed to work seamlessly with Avant mini loaders, ensuring the perfect balance of power, size, and performance. This precise compatibility delivers outstanding efficiency and productivity on every job.
With a wide range of attachments and options — including four cab types, extra work lights, and the Opticontrol™ system — Avant compact loaders can be used all year round. From winter maintenance to summer landscaping, they’re built for every season.
Avant’s hydraulic multi-connector makes changing attachments quick and effortless. It allows one-handed connection or disconnection, even under pressure or in freezing conditions, with no leaks and no risk of incorrect coupling.
Avant 4x4
All Avant mini loaders feature a robust hydrostatic drive system, with a powerful hydraulic motor on each wheel for smooth, responsive performance. The system includes advanced traction control valves to optimise grip in all conditions.
This intelligent design allows the left and right wheels to rotate at different speeds, reducing tyre wear on hard surfaces and preventing scuffing on soft or delicate ground.
The integrated 4×4 hydraulic differential lock balances oil flow between the wheel motors, delivering superior traction and stability on slippery or uneven terrain.
Technical Specifications
LIFT CAPACITY 1400 kg
ENGINE POWER 49 hp
LIFT HEIGHT 3 m
SPEED 15 km/h
SPECIFICATIONS
| Length | 3060 mm |
| Width | see table |
| Height | 2060 mm |
| Weight | 1850 kg |
| Standard wheels | 320/60-12” HD TR |
| Transmission, drive | hydrostatic |
| Aux. hydraulics oil flow / pressure | 70 l/min 240 bar |
| Hydraulic oil cooler | Standard |
| Turning radius inside/outside | 1240 / 2780 mm |
| Max. lifting height | 3080 mm |
| Max. lifting capacity (hydr.) | 2100 kg |
| Tipping load | 1400 kg |
| Max. breakout force / 50 cm | 1700 kg |
| Engine make and type | Kubota V2403 |
| Engine output (ISO Gross) | 36 kW (49 hp) |
| Fuel | Diesel |
PULLING FORCE
| Wheel size | Drive speed | Pulling force |
| 320/60-12 and 26×12.00-12 | 15 km/h | 1330 kp |
| 320/55-15 | 16 km/h | 1240 kp |
WIDTH
| Wheel size | Width | |
| 27 x 8.50 – 15 | 1030 mm | |
| 26 x 12.00 – 12 | 1295 mm | |
| 320/60-12 HD | 1295 mm | |
| 320/55-15 HD | 1305 mm |
HEIGHT WITH CAB
| . | 26×12.00-12 or 320/60-12 wheels | 320/55-15 wheels |
| LX Cab | 2078 mm | 2112 mm |
| DLX Cab | 2105 mm | 2139 mm |
| DLX with A/C on the roof | 2241 mm | 2275 mm |
With 400/50-15 the machine is 30 mm higher
Dimensions
LIFT CAPACITY 1400 kg
ENGINE POWER 49 hp
LIFT HEIGHT 3090 mm
SPEED 24 km/h
SPECIFICATIONS
| Length | 3060 mm |
| Width | see table |
| Height | 2100 mm |
| Weight, starting from | 1910 kg |
| Standard wheels | 320/55-15” TR/grass |
| Transmission, drive | hydrostatic |
| Aux. hydraulics oil flow / pressure | 70 l/min 240 bar |
| Turning radius inside/outside | 1240 / 2780 mm |
| Max. lifting height | 3080 mm |
| Max. lifting capacity (hydr.) | 2100 kg |
| Tipping load * | 1400 kg |
| Max. breakout force / 50 cm | 1700 kg |
| Engine make and type | Kubota V2403 |
| Engine output (ISO Gross) | 36 kW (49 hp) |
| Fuel | Diesel |
PULLING FORCE
| Wheel size | Drive speed | Pulling force |
| 320/60-12 HD | 22 km/h | 1880 kp |
| 320/55-15 HD | 25 km/h | 1750 kp |
| 400/50-15 | 26 km/h | 1600 kp |
WIDTH
| Wheel size | Width |
| 27 x 8.50 – 15 | 1080 mm |
| 26 x 12.00 – 12 | 1350 mm |
| 320/60-12 HD | 1350 mm |
| 320/55-15 HD | 1360 mm |
| 400/50-15 | 1450 mm |
HEIGHT WITH CAB
| . | 26×12.00-12 or | 320/55-15 wheels | 400/50-15 wheels |
| . | 320/60-12 wheels | ||
| LX Cab | 2078 mm | 2112 mm | 2132 mm |
| DLX Cab | 2105 mm | 2139 mm | 2169 mm |
| DLX with A/C on | 2241 mm | 2275 mm | 2305 mm |
| the roof |
Dimensions
LIFT CAPACITY 1400 kg
ENGINE POWER 57 hp
LIFT HEIGHT 3080 mm
SPEED 17 km/h
SPECIFICATIONS
| Length | 3060 mm |
| Width | see table |
| Height | 2060 mm |
| Weight | 1970 kg |
| Standard wheels | 320/60- 12 Tractor |
| Transmission, drive | hydrostatic |
| Aux. hydraulics oil flow | 80 l/min |
| Turning radius inside/outside | 1240 / 2780 mm |
| Max. lifting height | 3100 mm |
| Tipping load *) | 1400 kg |
| Max. breakout force / 50 cm | 1700 kg |
| Engine make and type | Kohler KDI 1903 TCR |
| Engine output (ISO Gross) | 42 kW (57 hp) |
| Fuel | Diesel |
PULLING FORCE
| Wheel size | Drive speed | Pulling force |
| 320/60-12 | ||
| and 26×12.00-12 | 17 km/h | 1330 kp |
| 320/55-15 | 18 km/h | 1240 kp |
WIDTH
| Wheel size | Width | |
| 27 x 8.50 – 15 | TR | 1030 mm |
| 26 x 12.00 – 12 | TR or grass | 1295 mm |
| 320/60-12 HD | TR | 1295 mm |
| 320/55-15 | TR or grass | 1305 mm |
HEIGHT WITH CAB
| . | 320-60/12 and | 320/55-15 |
| . | 26×12.00-12 | |
| LX Cab | 2078 mm | 2112 mm |
| DLX Cab | 2105 mm | 2139 mm |
| DLX Cab with | ||
| A/C on the roof | 2241 mm | 2275 mm |
Dimensions
LIFT CAPACITY 1400 kg
ENGINE POWER 57 hp
LIFT HEIGHT 3100 mm
SPEED 26 km/h
SPECIFICATIONS
| Length | 3060 mm |
| Width | see table |
| Height | 2110 mm |
| Weight | 2100 kg |
| Standard wheels | 400/50-15 TR |
| Transmission, drive | hydrostatic |
| Aux. hydraulics oil flow / pressure | 80 l/min @ 225 bar |
| Turning radius inside/outside | 1240/2780 mm |
| Max. lifting height | 3100 mm |
| Max. lifting capacity (hydr.) | 2100 kg |
| Tipping load * | 1400 kg |
| Max. breakout force / 50 cm | 1700 kg |
| Engine make and type | Kohler KDI 1903 TCR |
| Engine output (ISO Gross) | 42kW (57 hp) |
| Fuel | Diesel |
PULLING FORCE
| Wheel size | Drive speed | Pulling force |
| 400/50-15 | 30 km/h | 1600 kp |
WIDTH
| Wheel size | 760i |
| 400/50-15 TR | 1450 mm |
| 400/50-15 grass | 1450 mm |
| 31×15.5-15 grass | 1420 mm |
HEIGHT WITH CAB
| . | 760i with 400/50-15 |
| LX Cab | 2132 mm |
| DLX Cab | 2169 mm |
| DLX with A/C on the roof | 2305 mm |
Dimensions
